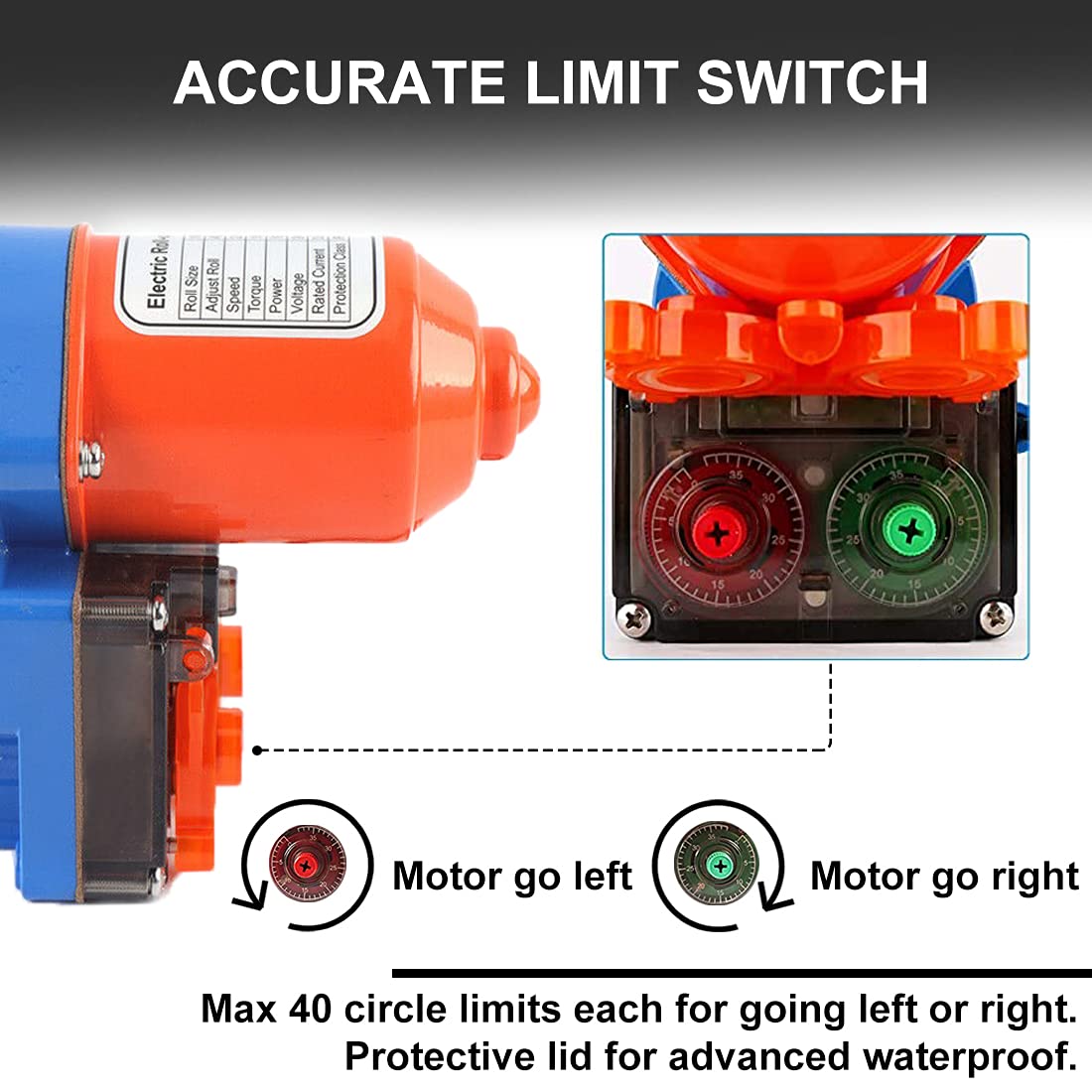

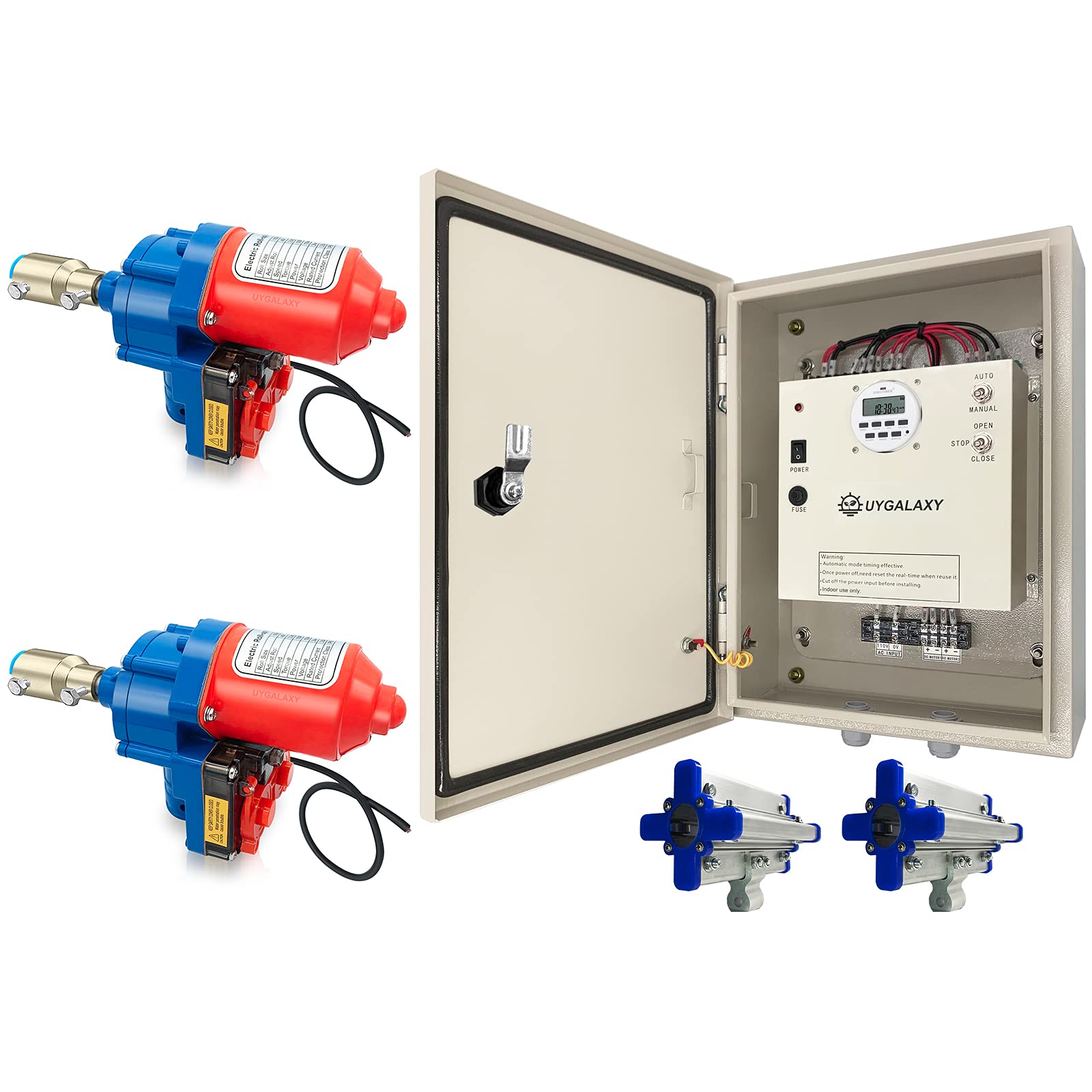

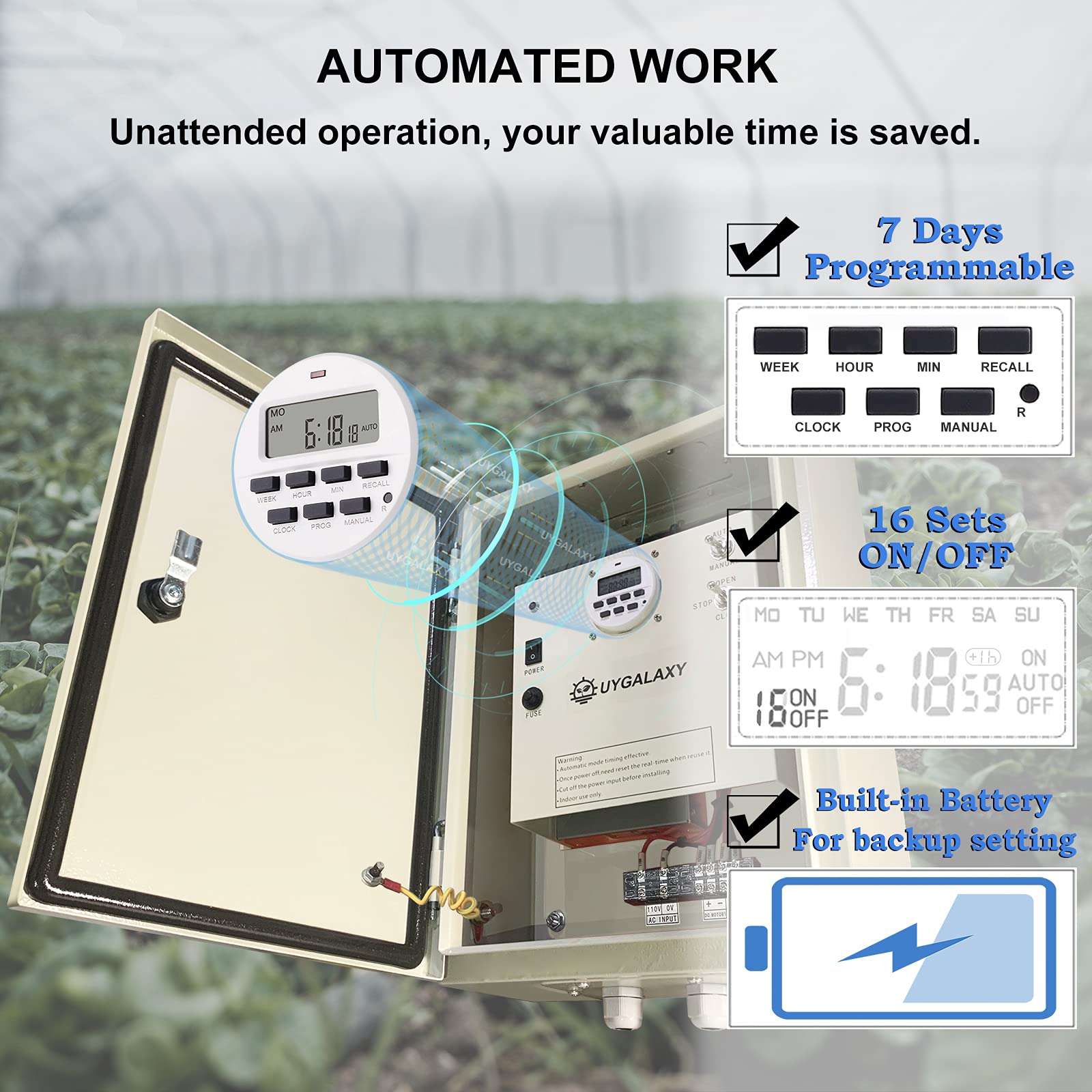

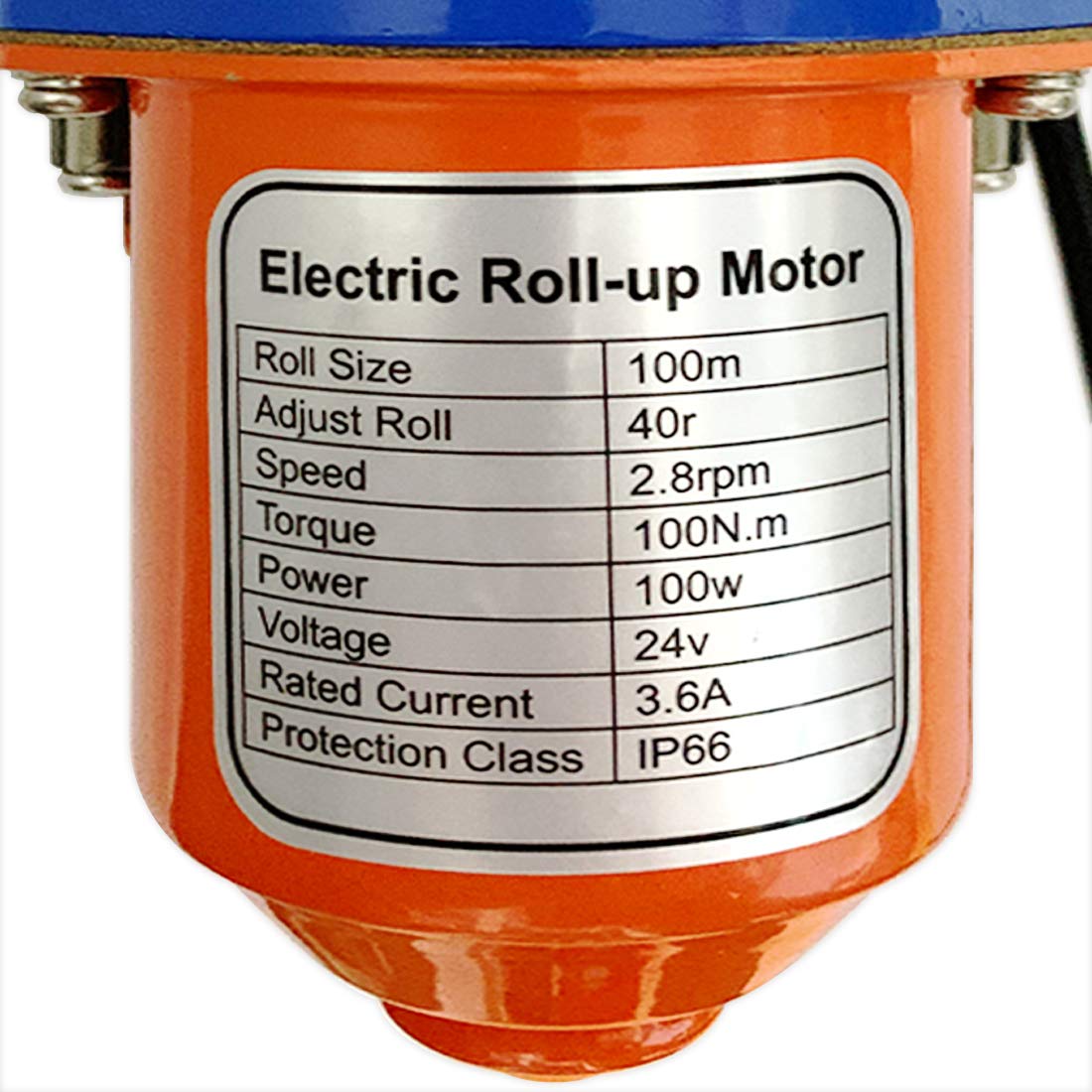

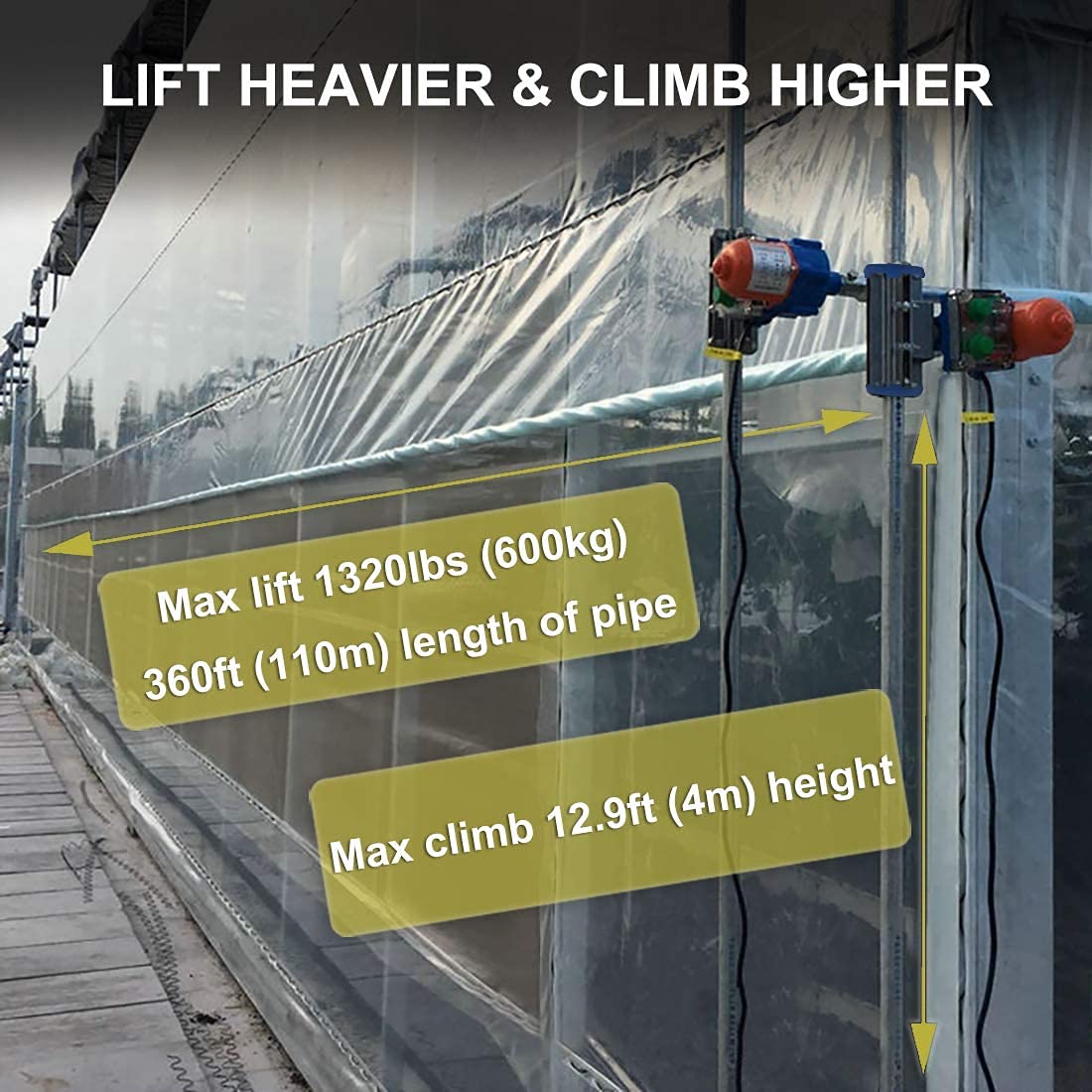

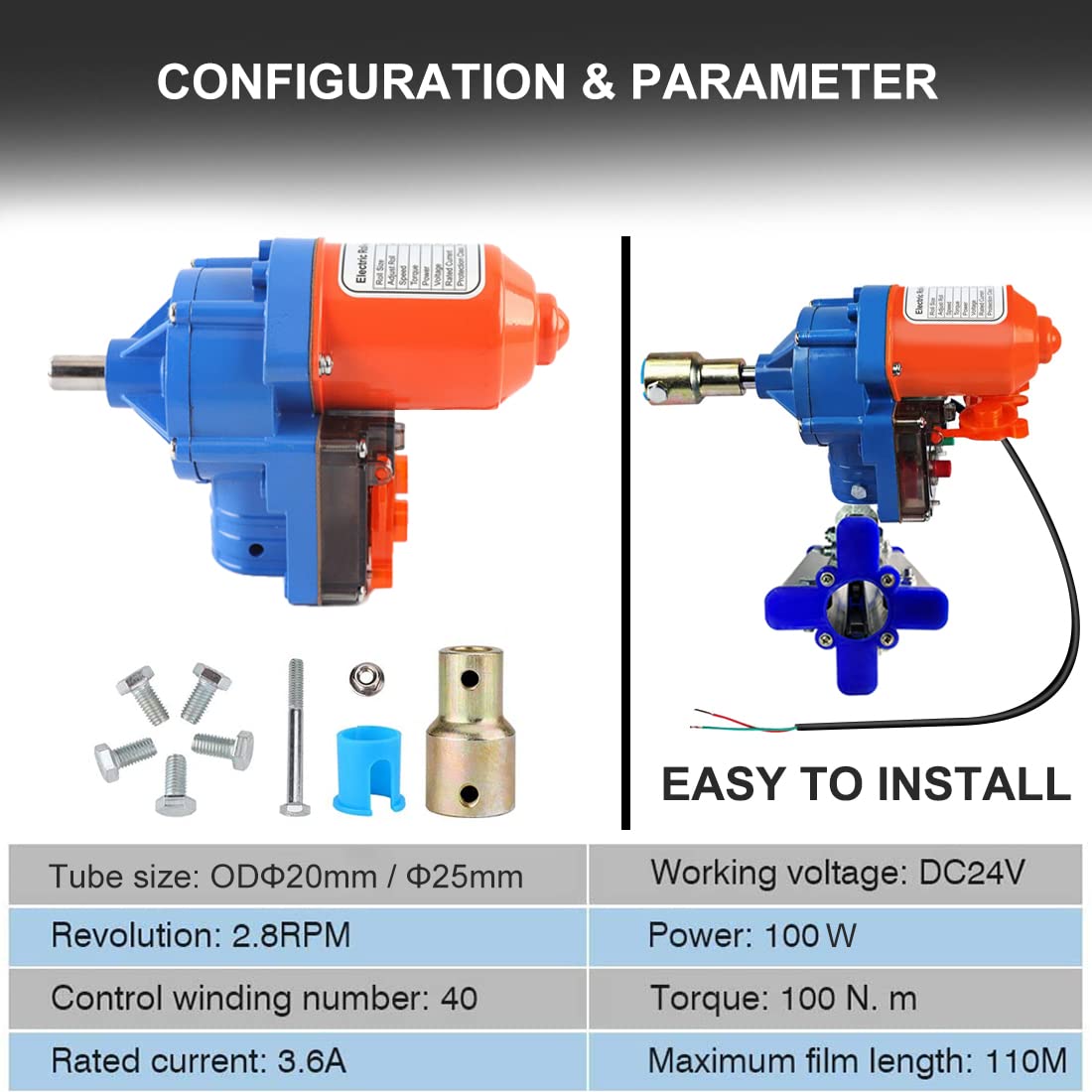

Useful in Your Greenhouse Package Include: 1* Timer Controller2* Roll Up Motors2* Creepers The electric roll-up motor for ventilation, which is used extensively in the greenhouse. Such as the solar greenhouse, vegetable greenhouse, cultivation greenhouse, multi-span film greenhouse and other assembled greenhouse, by which to open or close the side windows and top windows through the roll of film. Accessories 1*Creeper1*Roll bar adaptor5*Screws of M8x251*Bolt of M6x551*Nut of M6 M6X55 Screw set is for fixing climber Suggest ID 3/4" NPS roll tube and climbing tube Roll Up Machine Side Ventilation of Greenhouse Roll Tube Size: 5ft~360ftPower: 100 wattAdjust Roll: 40 limitsVoltage: DC 24vSpeed: 2.8 rpmRated Current: 4.0ATorque: 80 N.mProtection Class: IP66 Max roll tube length: 360ft(110m) Climb 10ft height when ID 1/2" NPS roll bar Climb 12.9ft height when ID 3/4" NPS roll bar Max lift 1320lbs (600kg) Roll Bar Adapter The original bronze color adapter fits for ID 3/4" NPS(DN20mm) galvanized tubing, roll bar travel is 12.9ft.Insert the blue shaft washer helps to fit for ID 1/2" NPS(DN15mm) galvanized tubing, roll bar travel is 10ft. Access to the Creeper Fits for OD 1" (or ID 3/4" NPS) galvanized tubing for creeper hole.The creeper will help the roll up motor up and down in a straight line. The Limit Switch Press the knob and rotate it for setting limits, it's invalid without press down.The waterproof lid to keep upper water resistance, please close it after setting up the limit switches. Swith1: ON/OFFFuse: 10A Press to resetToggle1: Auto/ManualToggle2: Open/Stop/Close Window by hand Switch Style: Maintained (switch the toggles, the motors will keep running until the limit is reached.) Suggest to wire up 10amp fuse for each channel of motor Timer Controller 7days Programmable with 16 on/off setting It Repeats The Settings For Every Week Input: AC 110VOutput1: DC 24VOutput2: DC 24VJoint box: 300W Transformer + programmable timerSize: 15.7*11.8*5.9inch 1.The motor with limit switch would stop once hitting the limit. 2.10A fuse for two channel of outputs. 3.Please install it inside the house. 4.The product is with timer, it's main for controlling the motors unattended.. 5.Please charge the timer's battery firstly for an hour when you receive the controller Programmable timer Easy set, just follow the manual. Set the local timeSet the time of ON(open)/Off(Close)Set it as auto mode Connection panel For AC Input: Connect the black wire(L,live) to 110V and connect the white wire(N,neutral) to 0V Grounding (Optional) Individual grounding bar (the red flag)Please carefully if wire it, make sure you are using grounding wireOr easily connect a wire between the metal shell and the earth Wide Use in your Greenhouse Vegetable & Herb Fruit & Flower Chicken & Livestock Save Labor UYGALAXY Greenhouse Roll Up Motor System IP66 waterproof protection class.Compact size and low noise, easy installation.Can side of the roll, also can top roll.Roll up tube length from 5~360ft, climb 10ft height when ID 1/2" NPS roll tube(DN15), climb 12.9ft height when ID 3/4" NPS roll tube(DN20).Setting the limit switches on hoop house roll up ventilation motors, roll up motor and creeper work perfectly together Tips: After the installation of the roll up motor, be sure to cover the waterproof cover to prevent water.It's suggested to use 16 AWG wires for motors if the wire is within 165ft (50m), the extension wire is not included.It's suggested OD25mm(1inch) for creeper, which is also named ID 3/4" NPS pipe. UYGALAXY Greenhouse Roll Up Motor System IP66 waterproof protection class.Compact size and low noise, easy installation.Can side of the roll, also can top roll.Roll up tube length from 5~360ft, climb 10ft height when ID 1/2" NPS roll tube(DN15), climb 12.9ft height when ID 3/4" NPS roll tube(DN20).Setting the limit switches on hoop house roll up ventilation motors, roll up motor and creeper work perfectly together Tips: After the installation of the roll up motor, be sure to cover the waterproof cover to prevent water.It's suggested to use 16 AWG wires for motors if the wire is within 165ft (50m), the extension wire is not included.It's suggested OD25mm(1inch) for creeper, which is also named ID 3/4" NPS pipe.
